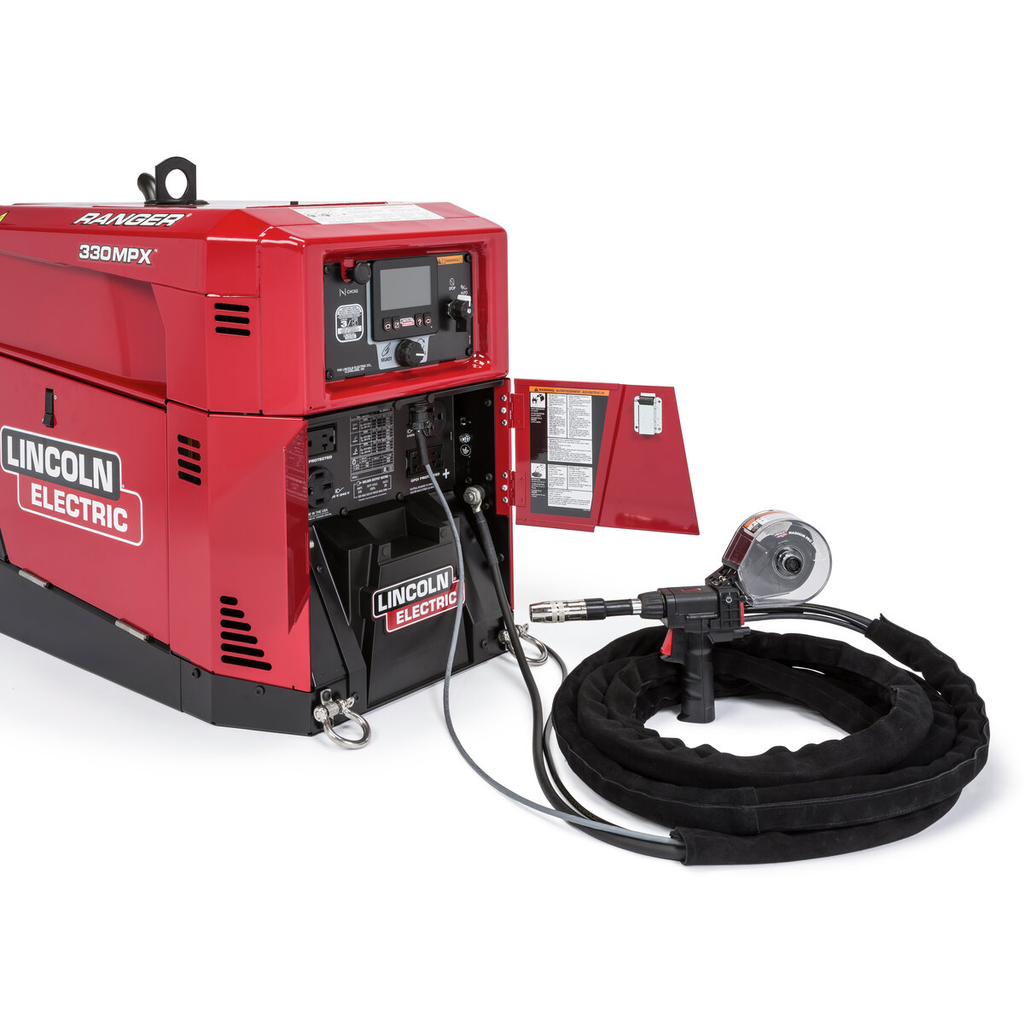

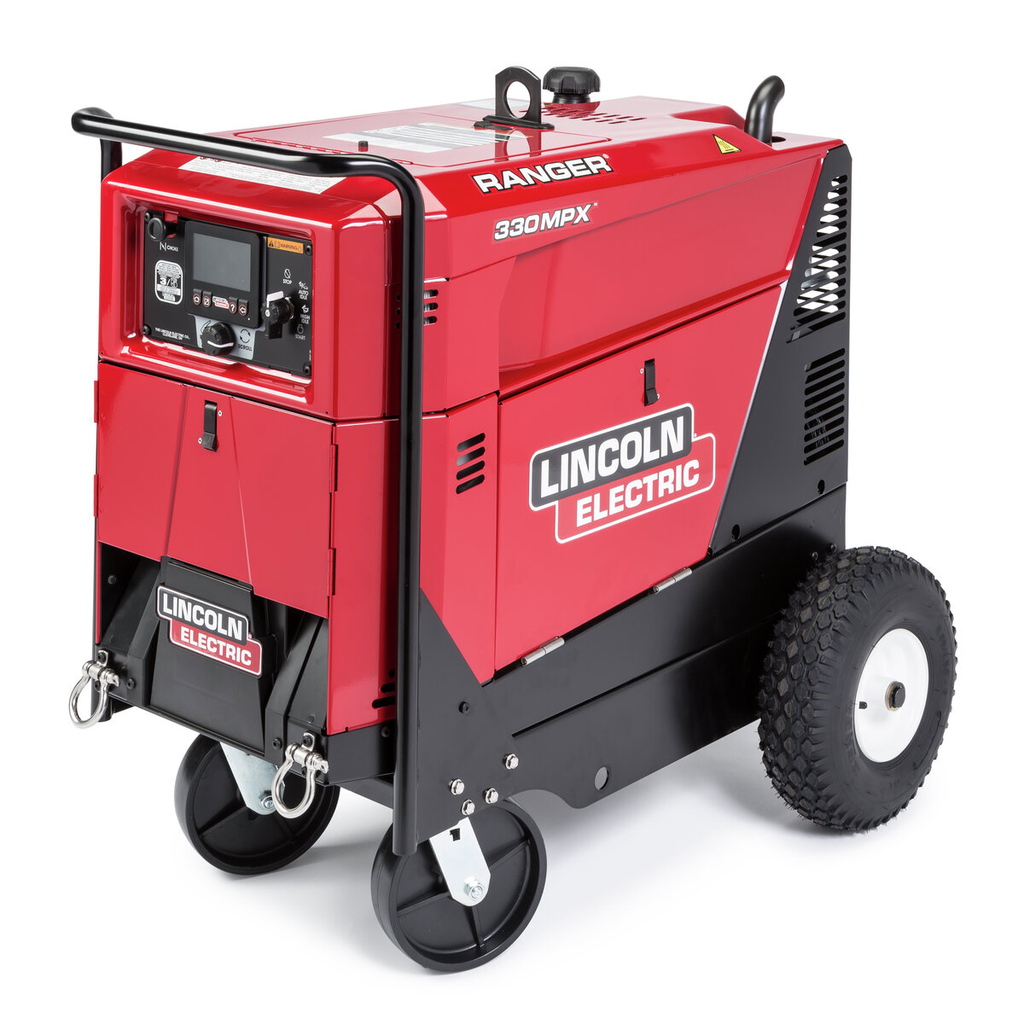

Ranger® 330MPX™ Engine Driven Welder (Kohler®)

Item Code: LNMK3459-1
Category Engine Driven
Catalog Number K3459-1

Fetching product details


Description

The Ranger® 330MPX™ welder and generator leads the way for the construction, maintenance, and service truck industries. The modern design and advanced features allow this machine to streamline welding operations and improve efficiency at the job site. The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site. The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity. Enhanced remote control capabilities offer operators the ability to select their preferred remote amperage scale along with fine tune adjustments available on hot start, arc force, and pinch controls. The Ranger 330MPX is up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace.

Specifications

  • Arrester : Optional
  • Brand : Lincoln Electric
  • Category : Engine Driven
  • Control Type : Continuous
  • Controller : Mechanical
  • Cooling : Air
  • Cooling System : Air
  • Engine Brand : Kohler
  • Engine Cylinders : 2
  • Engine Type : Carbureted
  • Fuel Consumption : 0.6 gal/hour
  • Fuel Tank Capacity : 11 gal
  • IEC Rating : 292 amp
  • Ingress Protection : IP23
  • Input Icon : G
  • Jumper Terminals : No
  • Length : 36 in
  • Maximum : 28 volt
  • Maximum Output : 300-399
  • Number of Control Knobs : 1
  • Oil Capacity : 1.9 liter
  • Output : CC/CV
  • Output Frequency : 60 Hz
  • Output Meters : Digital
  • Output Mode : CC
  • Polarity : DC
  • Rated Gouging Carbon Diameter : 3/16 in
  • Receptacle Type : NEMA 14-50R
  • Remote Control Type : CrossLinc
  • Temperature : 40 deg C
  • User Interface Type : Display Screen
  • VRD : No
  • Weight : 202 kg
  • Welding Controls : Chopper
  • Welding Mode : Arc Gouging
  • Welding Thechnology : Chopper
Login to view your prices
Call for price
Starting from
$9,849.99 / EA
/
